Description

Oase BioTec ScreenMatic² 140000 Filter

Clear and healthy pond water with minimum maintenance requirements
Particularly long service life thanks to automatic coarse debris extraction before it enters into the filter
Continuous belt filter at an affordable price

Includes OASE Clear Water Guarantee

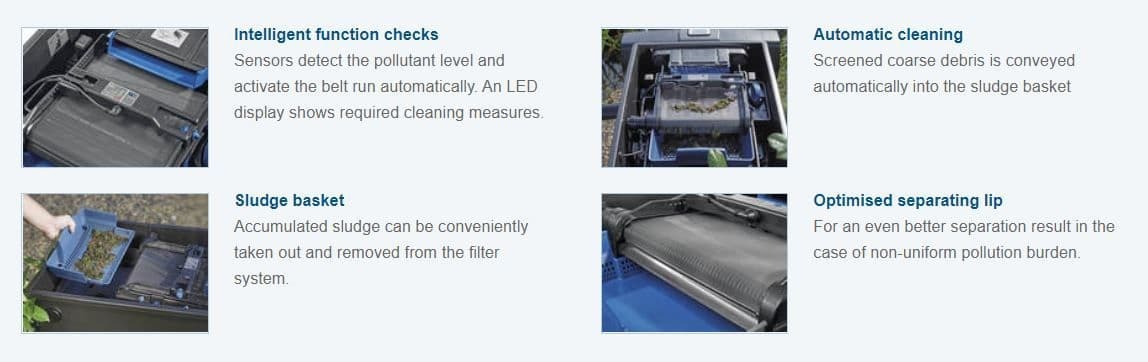

Significantly less maintenance is required, thanks to coarse debris extraction
More convenience, thanks to automatically driven self cleaning of the belt filter. Adjustable cleaning Sensor controls the belt run, depending on the degree of pollution. Includes LED function check
Cleaning of filter sponges directly in the filter, without removal
Sludge drain with slide valve for removing debris from the filter system
Different filter media for optimal development of filter bacteria
Use of the PhosLess filter media tubes as needed for string algae reduction (optional accessory)
Optimally matched to OASE AquaMax Eco filter pumps
Direct connection possibility for Bitron C and Eco UVC clarifiers
Reinforced strap material for an extended service life
Double-sealed motor for an extended service life
Water distributor without danger of clogging: Distributes the water uniformly on the belt filter
Sludge basket with greater volume and simplified handling
Rubberised separating lip for outstanding separation result
Free brush for occasional cleaning of the belt filter
Manual belt run now possible via button
Highly effective flow-through filter for ponds up to 140,000 litres without fish, 70,000 litres with fish, 35,000 litres with Koi.

Dimensions (L x W x H)	mm	1200 x 800 x 760
Rated voltage (primary, secondary)		230 V / 50 Hz, 12 V / AC
Power consumption	W	5
Cable length 12 V device (with power unit)	m	2.10 (Power unit) + 5.00
Net weight	kg	105.00
Guarantee (+ request guarantee)	Years	2 + 1 = 3
Number of filter foams, total	Units	18
Number of blue filter foams	Units	4
Number of red filter foams	Units	7
Number of purple filter foams	Units	7
Special filter granulate	kg	14.50
Temperature display		No
Coarse debris extraction	µm	300
Inlet connections	mm	25 / 32 / 38 / 50
Inlet connections		1", 1 ¼", 1 ½", 2"
Outlet connections		DN 110
Sludge discharge connections		DN 75
Min. flow rate	l/h	8000
Max. flow rate	l/h	17500
Suitable for ponds up to max.	m³	140.0
Suitable for ponds with fish stock	m³	70.0
Suitable for ponds with koi	m³	35.0
Connection to		Bitron C 36 - 110 W, Bitron Eco 120 - 240 W
Item number		57696
